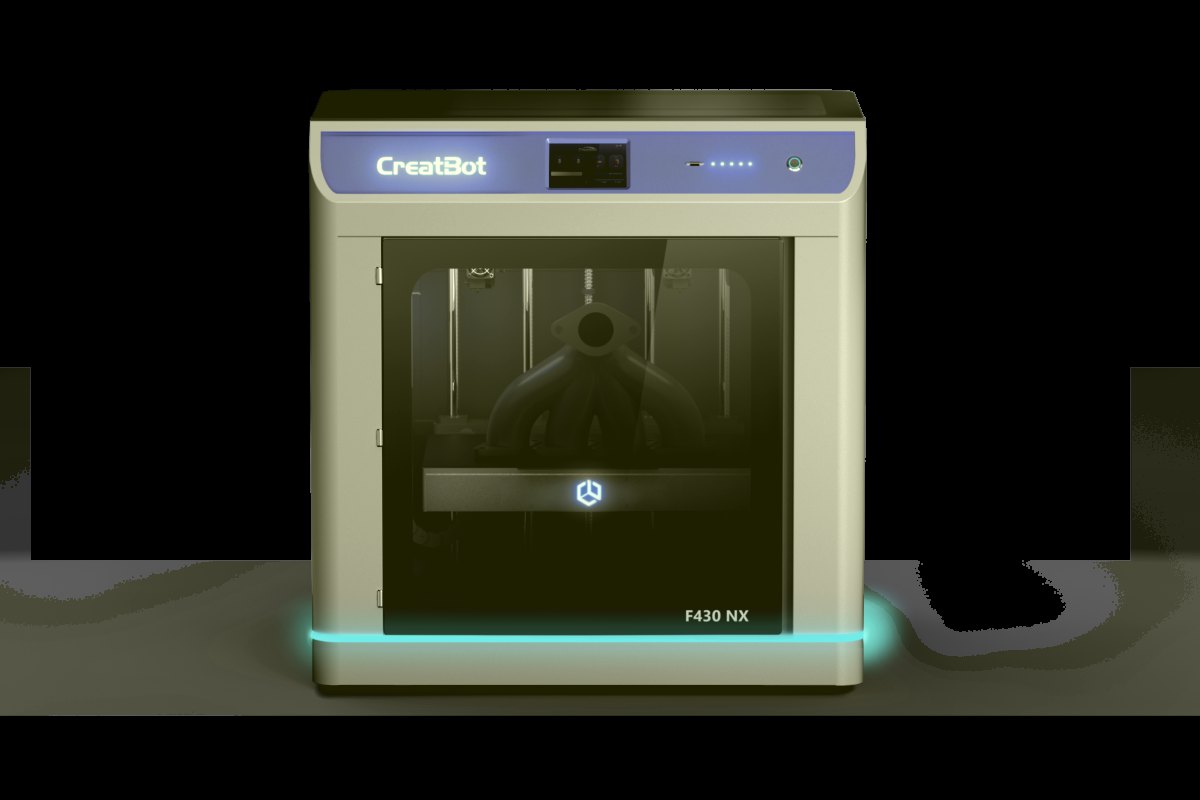

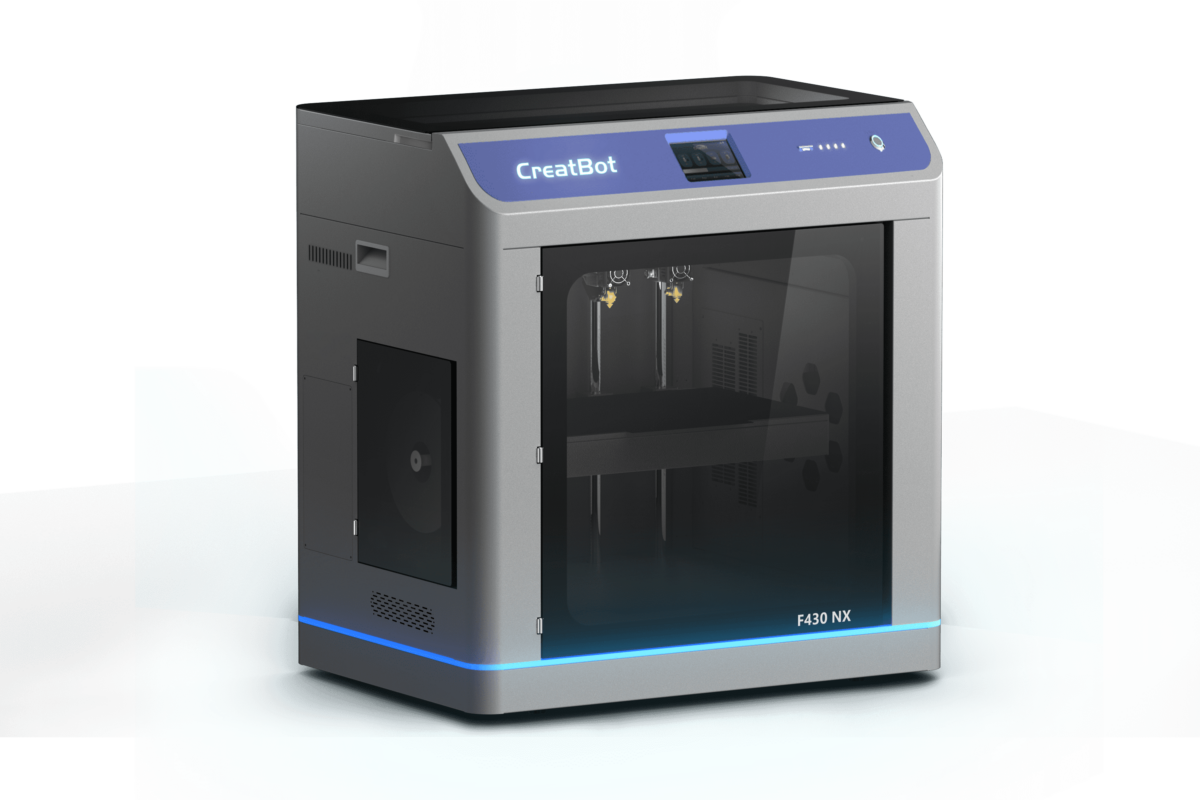

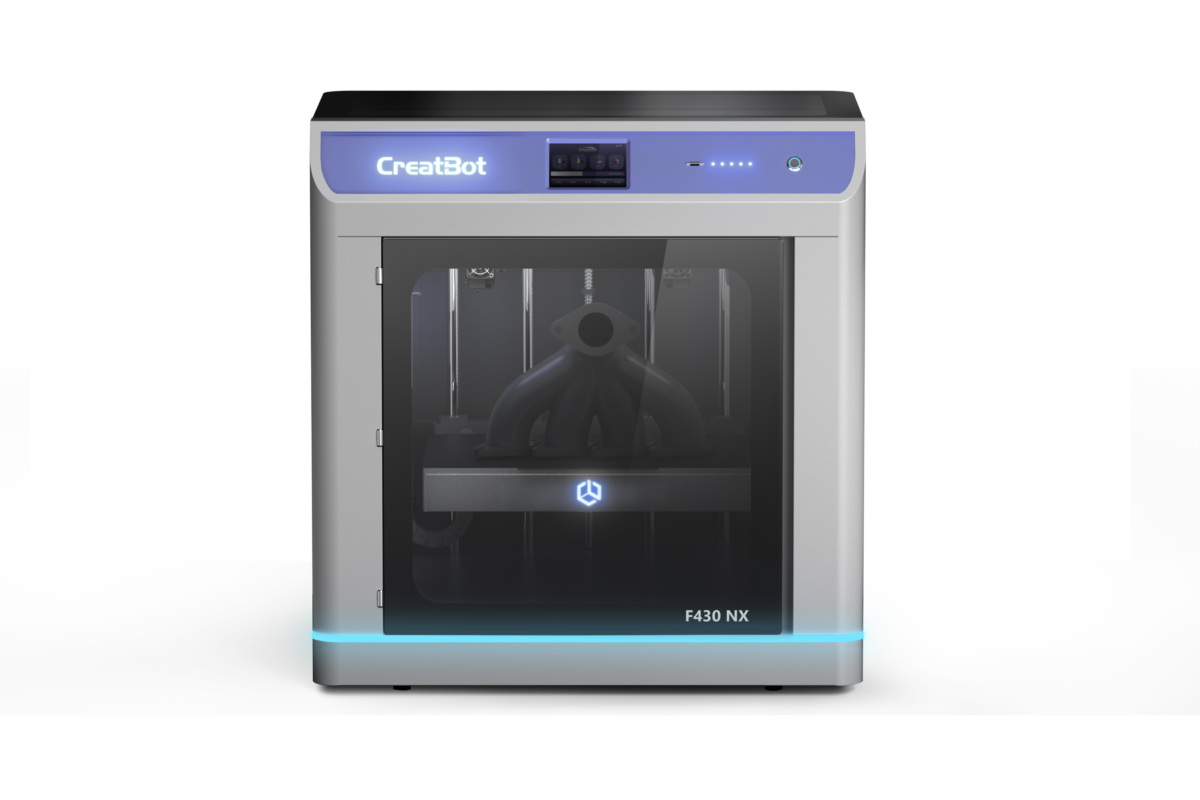

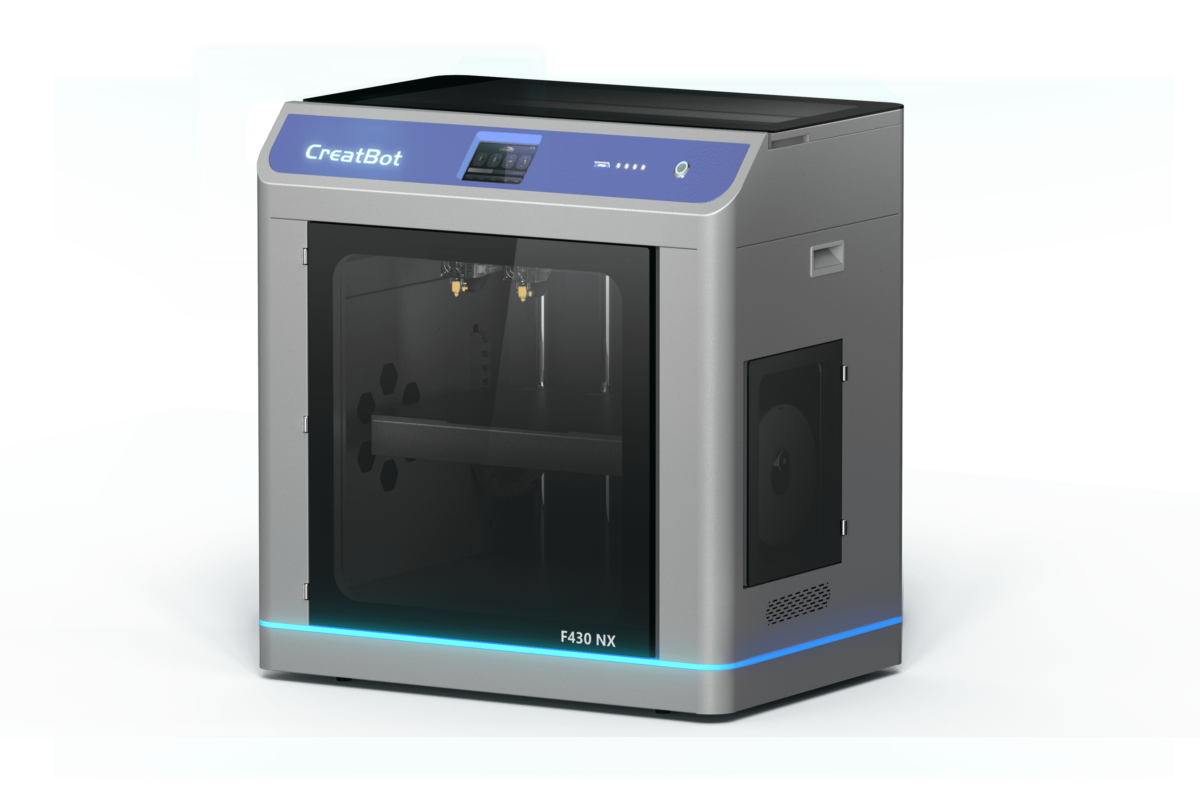

Creatbot F430NX

$7,199.00

Category:

Description

The CreatBot F430NX is a high-performance, industrial-grade 3D printer designed for professionals and businesses looking for precision and versatility. Featuring IDEX (Independent Dual Extruder) technology, it supports dual-material and dual-color printing, copy and mirror modes, and a high-temperature nozzle that can reach up to 420°C. This makes it ideal for printing with a broad range of materials, including engineering-grade filaments like PA, PC, PET-CF, and UltraPA-CF. The flexible magnetic build platform and intuitive 5″ full-color touch screen provide a seamless user experience, while advanced features like HEPA+activated carbon filtration and power outage recovery ensure reliable, safe operation.

General Specifications

  • Machine Type: Industrial-grade 3D Printer
  • Printing Technology: Fused Filament Fabrication (FFF)
  • Extrusion System: IDEX Independent Dual Extruder
  • Operating Environment: 10-30°C
  • Noise Level: ≤ 50 dB
  • Weight:
    • Product: 80 kg
    • Packaging: 107 kg
  • Dimensions:
    • Print Area:
      • Single Head: 400 x 300 x 300 mm
      • Dual Extrusion: 340 x 300 x 300 mm (Copy mode); 225 x 300 x 300 mm (Mirror mode); 190 x 300 x 300 mm
    • Product: 780 x 540 x 750 mm
    • Packaging: 870 x 640 x 1060 mm

Performance

  • Maximum Nozzle Temperature: 420°C
  • Maximum Bed Temperature: 140°C
  • Filament Diameter: 1.75 mm
  • Positioning Precision:
    • X/Y: 12.7 μm
    • Z: 1.25 μm
  • Layer Thickness: 0.02 mm
  • Nozzle Diameter: 0.4 mm (Available: 0.3, 0.5, 0.6, 0.8, 1.0 mm)
  • Printing Speed: 50-300 mm/s
  • Heating Plate Material: Food-grade silicone

Software & Connectivity

  • Software: CreatWare (multi-lingual support)
  • Supported File Types: STL, OBJ, AMF, GCODE
  • Operating Systems: Windows, macOS, Linux
  • Connectivity Options: Wi-Fi, Ethernet, USB, LAN

Features

  • Build Plate Leveling: Automatic
  • Air Filtration: HEPA + Activated Carbon
  • Touch Screen: 5″ True Color Touch Screen (multi-lingual support)
  • Power Supply:
    • 110V: 2400W
    • 220V: 3000W
  • Resume Printing After Power Outage: Yes
  • Filament Detection: Yes
  • Automatic Shutdown: Yes
  • Lighting: Status Breathing Light

Supported Filament Types

  • PLA, ABS, PA, PC, PETG, PP, ABS-PC
  • High-strength materials: PET-CF, PET-GF, UltraPA-CF, UltraPA-GF, and more

Download the brochure here -> CreatBot F430 NX introduction
