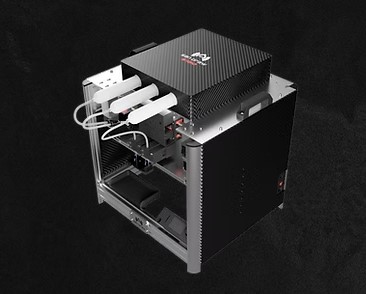

San Draw S180 Silicone 3D Printer

$15,499.00

Retail price is BUY IT NOW price. Please contact us for a quote if you are representing an educational institution or research entity!

Print Technology: FAM.

Software: FAMufacture.

File Format: STL.

Connectivity: USB cable, SD card.

Operating System: Windows 10.

Print Size: X235 x Y270 x Z150 mm.

Printer Size: X700 x Y700 x Z700 mm.

Net Weight: Approx. 60kg.

Barrel Number: 2 for silicone; 1 for soluble support material.

Nozzle Number: 1 for silicone; 1 for soluble support material.

Z Axis Motion: Linear Actuator w/ ball screw.

Z Positioning Accuracy: ±0.02mm.

XY Positioning Accuracy: ±0.02mm.

Layer Thickness: 0.01~0.2mm.

Nozzle Diameter: 0.2mm, 0.4mm.

Nozzle Valve: Yes.

Calibration: Automatic.

Silicone Compatibility: SIL30, SIL50, SIL70, SIL65.

Silicone Curing: Heat cure by oven.

Support Material: Silicone, water-soluble support material.

Third-party Material Compatibility: Yes (silicone, hydrogel, ceramic gel, food gel, etc.…).

Retail price is BUY IT NOW price. Please contact us for a quote if you are representing an educational institution or research entity!

Category:

Description

Introducing the San Draw S180, the ultimate 3D printing solution for your business needs.

Using FAM print technology and FAMufacture software, this printer is capable of creating complex 3D models with precision and accuracy.

With a print size of X235 x Y270 x Z150 mm and a printer size of X700 x Y700 x Z700 mm, the S180 can handle large and small prints with ease. The printer is compatible with STL file formats and can be connected through USB cable or SD card.

The S180 runs on Windows 10 operating system and has a net weight of approximately 60kg. It features two barrels for silicone and one for soluble support material, with one nozzle each for silicone and soluble support material. The printer has a Z axis motion linear actuator with a ball screw, ensuring smooth and reliable movement.

With a Z positioning accuracy of ±0.02mm and XY positioning accuracy of ±0.02mm, the S180 can achieve high levels of detail and precision. It has a layer thickness range of 0.01~0.2mm and comes with 0.2mm and 0.4mm nozzle diameter options.

The S180 has a nozzle valve and automatic calibration, making it easy to use and maintain. It is compatible with various types of silicone, including SIL30, SIL50, SIL70, and SIL65, which can be cured by heat in an oven. The printer also supports water-soluble support materials and third-party materials such as hydrogel, ceramic gel, food gel, and much more.

Invest in the San Draw S180 today and take your 3D printing to the next level!

Check out the S180 in operation!

Video produced by San Draw Inc.

Use Cases:

Laboratory Equipment manufacturing

Either in-house or service bureau

Medical Devices

Implantology Devices/Materials



And we’ll teach how to use it for free!

Contact us for more information and for a no obligation quote!

Does your organization represent a school, university, or other educational entity invovled in STEM? Contact us today for a special offer!

Download the full San Draw catalog here: 2023 SanDraw Catalog







Additional information

Weight 60 kg
