🧩 Lesson: Other Technologies – Emerging Innovations & Construction 3D Printing
✅ Summary
3D printing continues to evolve beyond traditional methods. In this lesson, you’ll explore cutting-edge technologies like volumetric and chip-based printers, alongside large-scale construction 3D printing that’s revolutionizing architecture and infrastructure. Understand how these innovations are reshaping what’s possible in additive manufacturing.
🎯 Learning Objectives
By the end of this lesson, learners will be able to:
-
Describe pioneering new 3D printing methods such as volumetric, chip-based, and acoustic interface printing
-
Explain how construction-scale printing technologies work and their real-world applications
-
Evaluate the benefits and challenges of large-format additive manufacturing
-
Identify organizations, projects, and efforts pushing these technologies forward
📘 Lesson Content
🧠 1. Cutting-Edge Printing Technologies
1.1 Volumetric (Tomographic) Additive Manufacturing
-
Creates 3D objects in seconds by projecting light patterns into resin-filled volumes, curing entire sections at once tomshardware.com+2en.wikipedia.org+2arxiv.org+2.
-
Eliminates the layer-by-layer constraint, enabling rapid and smooth builds of complex geometries up to centimeters in size.
-
Advances include Holographic VAM, which uses phase modulation to enhance resolution arxiv.org+1arxiv.org+1.
1.2 Volumetric High-Area Rapid Printing (HARP)
-
Developed in 2019 for fast, heat-managed SLA printing of large parts using a dynamic cooling interface origin-team.com+15en.wikipedia.org+15arxiv.org+15.
-
Enables continuous, high-speed builds without thermally induced defects, ideal for industrial-scale resin parts.
1.3 Silicon Photonics Chip-Based Printers
-
MIT researchers developed a coin-sized photonic chip that uses nanoscale optical antennas to cure resin via light – no moving parts en.wikipedia.orgtomshardware.com.
-
Represents a future path toward ultra-compact, wearable, or portable printers that can embed structures at the microscale.
1.4 Dynamic Interface Printing (DIP)
-
Uses acoustically modulated liquid–air boundaries to rapidly build cm-scale parts in seconds en.wikipedia.org+15arxiv.org+15tomshardware.com+15.
-
Key innovation: high resolution, speed, and compatibility with biocompatible materials, useful for biomedical manufacturing.
🏗️ 2. Construction-Scale 3D Printing (3DCP)
2.1 What is Construction 3D Printing?
-
Large-scale additive manufacturing using materials like cementitious concrete.
-
Methods include powder binding, concrete extrusion, and robotic arm deposition en.wikipedia.org+1en.wikipedia.org+1.
2.2 Notable Technologies
-
Gantry systems (ICON’s Vulcan) print entire walls or homes layer-by-layer. ICON has printed over 90 homes in Texas constructconnect.com+5the-sun.com+5en.wikipedia.org+5.
-
Robotic arms and mobile bases (Luyten 3D’s Platypus X12, ARCS system) enable on-site printing and multi-storey structures arxiv.org+2en.wikipedia.org+2en.wikipedia.org+2.
-
Robotic slip-forming and binder-jetting of powder-cement composites further expand possibilities news.com.au+15en.wikipedia.org+15protolabs.com+15.
2.3 Key Applications & Projects
-
Affordable housing: ICON’s Wolf Ranch community, Habitat for Humanity projects ($0.15–0.50/sq ft labor savings) the-sun.com.
-

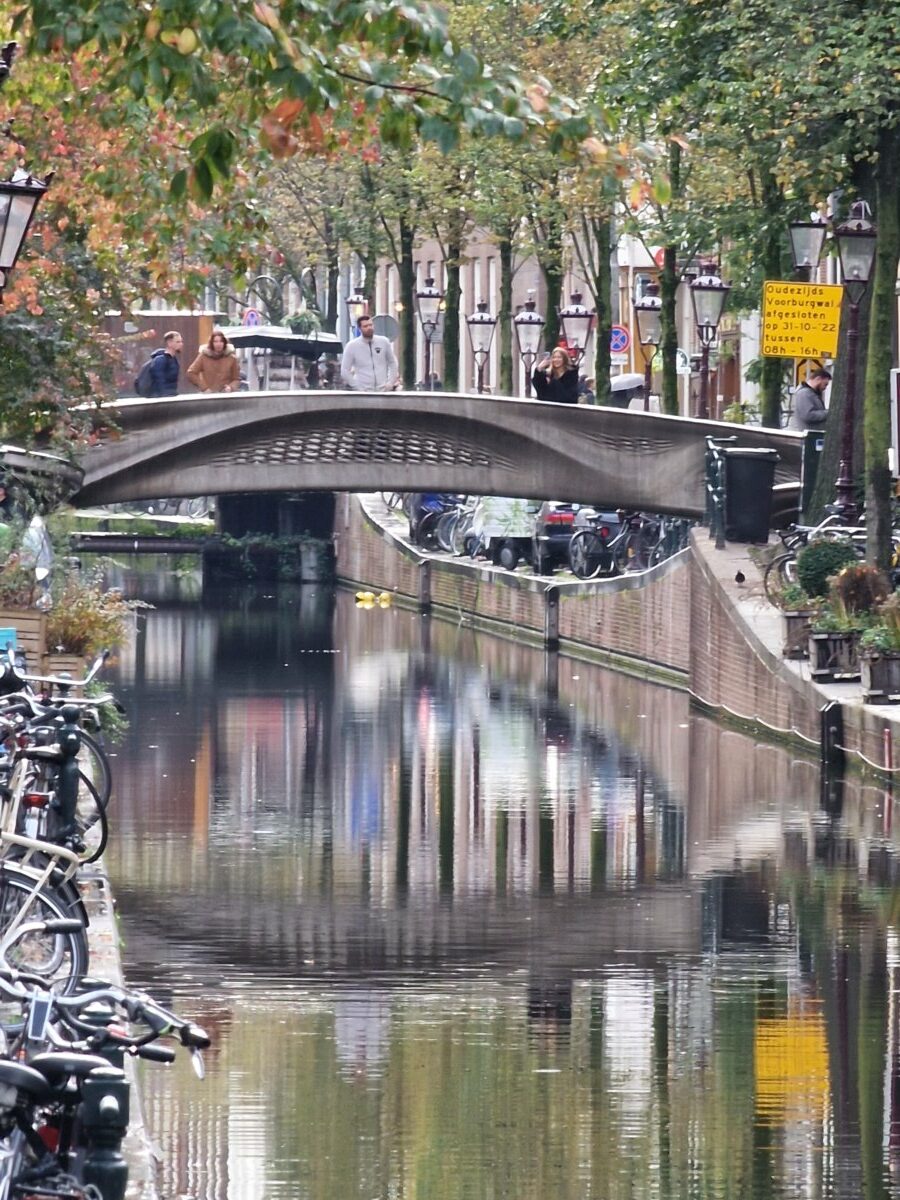

Large-scale infrastructure: World’s longest printed concrete bridge in Nijmegen (29 m length) arxiv.org.
-
Innovative builds: Australia’s first code-approved, two-storey printed house by Luyten (32 hr print time) apnews.com+7en.wikipedia.org+7en.wikipedia.org+7.
✅ 3. Pros & Cons of Construction 3D Printing
Pros | Cons |
---|---|
Reduces material waste by printing only what’s needed constructconnect.com | High costs for large-scale equipment |
Cuts labor needs and human error | Regulatory hurdles and building code adaptation |
Enables freeform design and complex geometries | Slower for simple, conventional structures |
Accelerates build time (weeks vs months) | Material stability and reinforcement present challenges |
🧩 4. Future Outlook
-
Researchers are exploring autonomous drone-based printing, swarm methodologies, and lunar construction prototypes origin-team.com+13en.wikipedia.org+13arxiv.org+13.
-
Advances in photonic and volumetric printing aim to shrink 3D printers to chip-size, revolutionizing desktop manufacturing tomshardware.com.
-
Construction 3D printing is set to mature over the next decade with the integration of lower-carbon mix designs, regulatory standards, and hybrid print–assembly systems .
🧠 5. Summary
Emerging 3D printing technologies are expanding into ultra-fast, volumetric, micro, and large-scale domains. From chip-based microprinters to whole houses printed on-site, these innovations are redefining manufacturing—from desktop to the built environment. Understanding these technologies empowers you to envision 3D printing across all scales.
📂 Resources & Further Reading
-
MIT’s photonic chip printer breakthrough tomshardware.com
-
ICON’s Vulcan printers and frontier construction projects en.wikipedia.org+4the-sun.com+4architecturaldigest.com+4
-
Technical review of volumetric and HARP processes en.wikipedia.org
-
Construction-scale printing reviews and case studies pmc.ncbi.nlm.nih.gov+8en.wikipedia.org+8origin-team.com+8
